Preform elevator guide path
Plain white preforms move through the green guide section of an elevator mechanism.
What to watch: Follow how the guide surfaces constrain the workpieces as they rise.
Open video notesApplication solution
PET Preform Elevator, Orientation and Feeding Solution
A front-end feeding solution for blow-molding lines that lifts, buffers, checks orientation, reorients and transfers PET preforms to the receiving fixture.
Solution overview
Production requirements
Loose PET preforms must reach the downstream blow-molding fixture in a repeatable orientation and transfer sequence. The system organizes this material flow before the blow-molding process.
Process
- 01

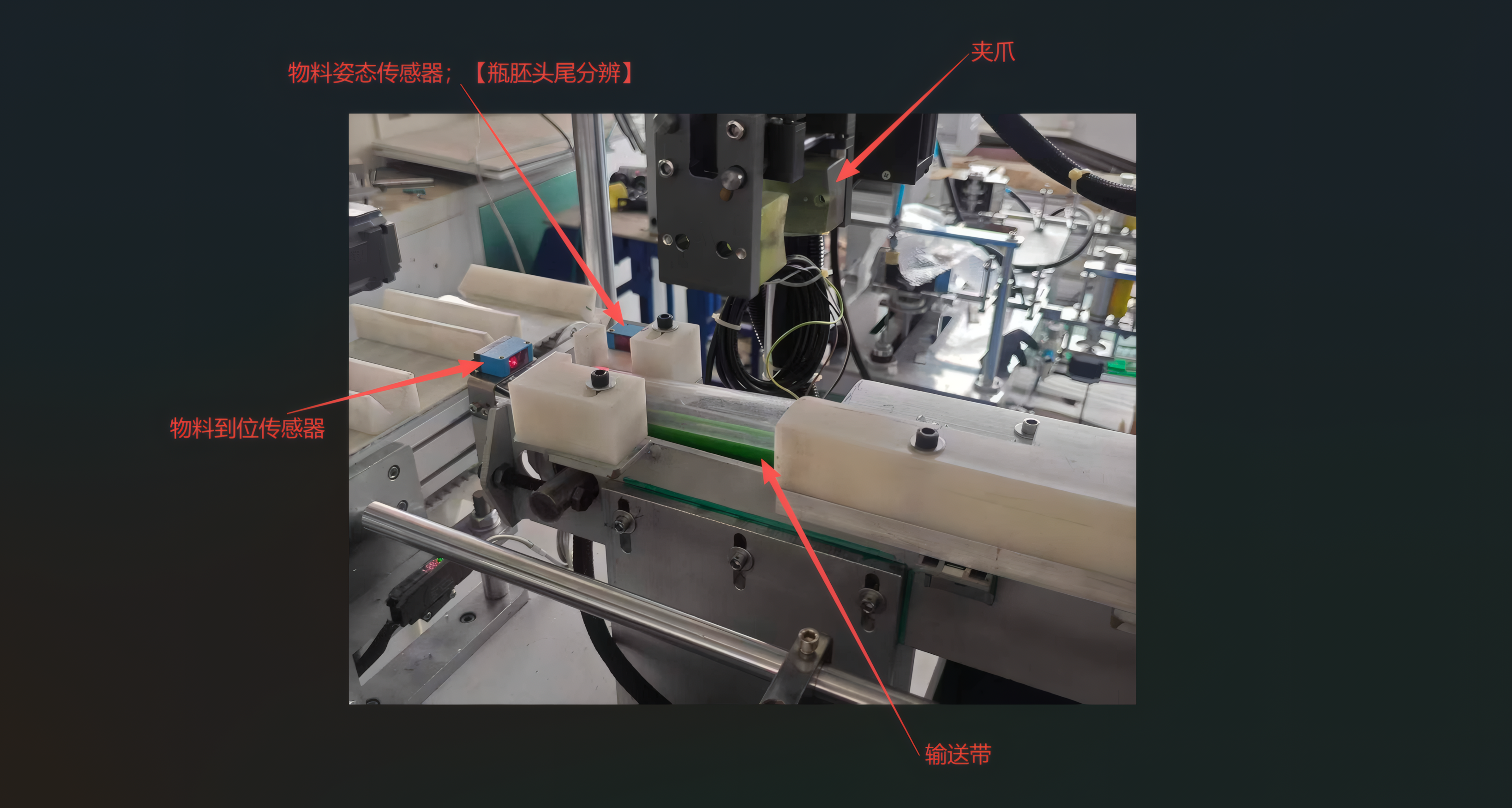

Lift preforms from the upstream loading area.
- 02

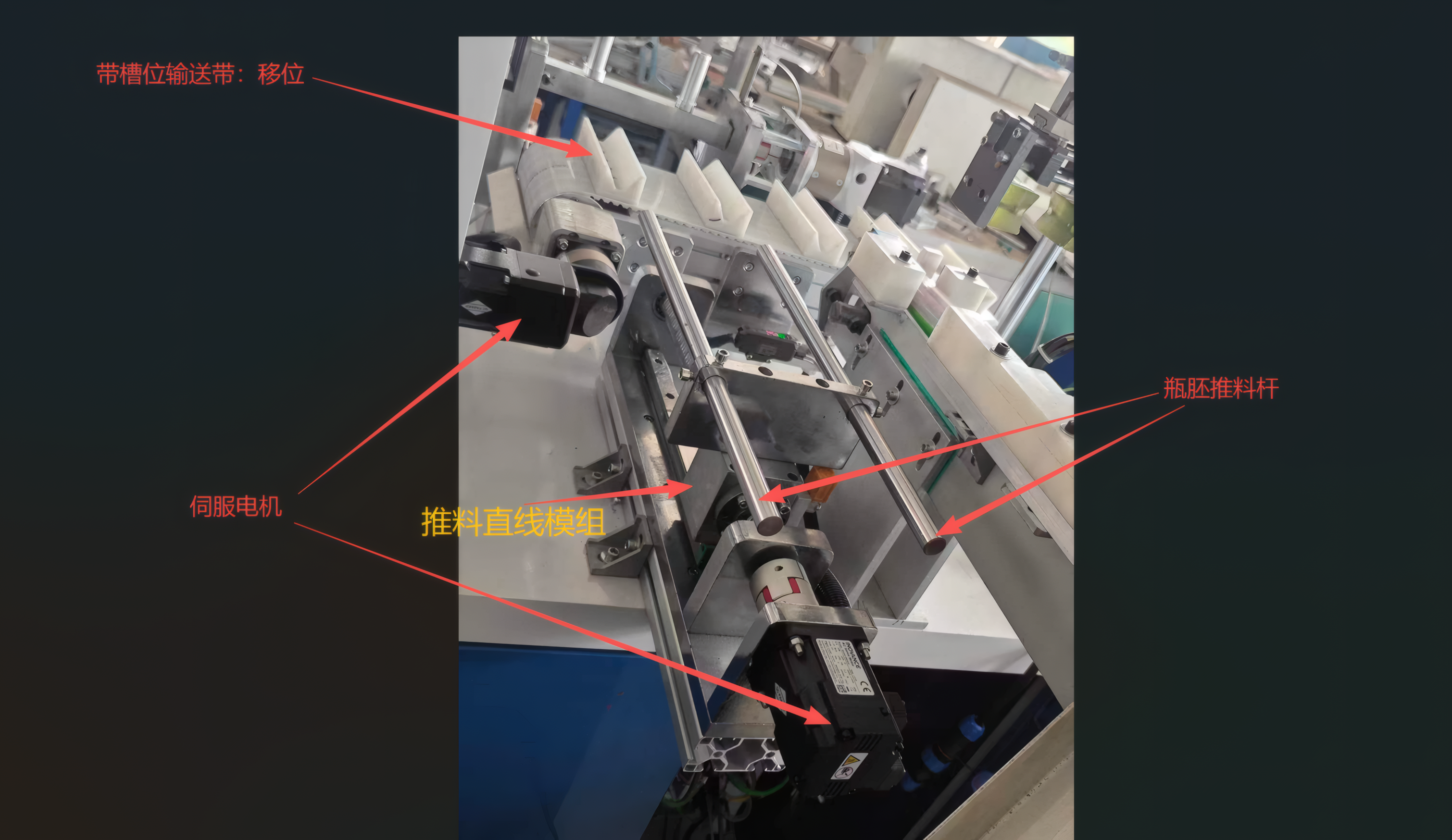

Convey and buffer preforms for the next handling step.
- 03
Check preform orientation.
- 04

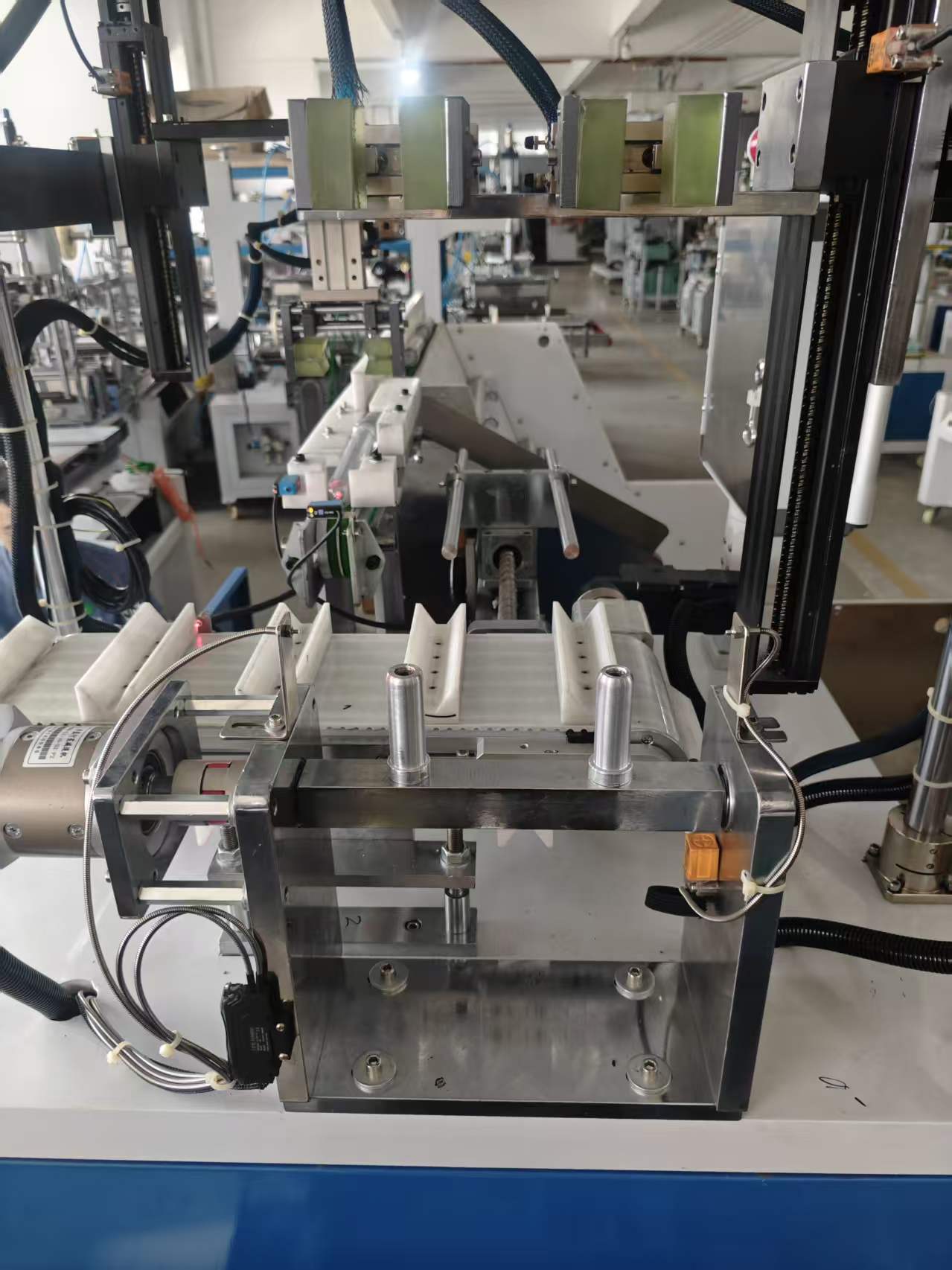

Correct orientation when the preform is not in the required direction.
- 05
Transfer preforms into the receiving fixture.
- 06

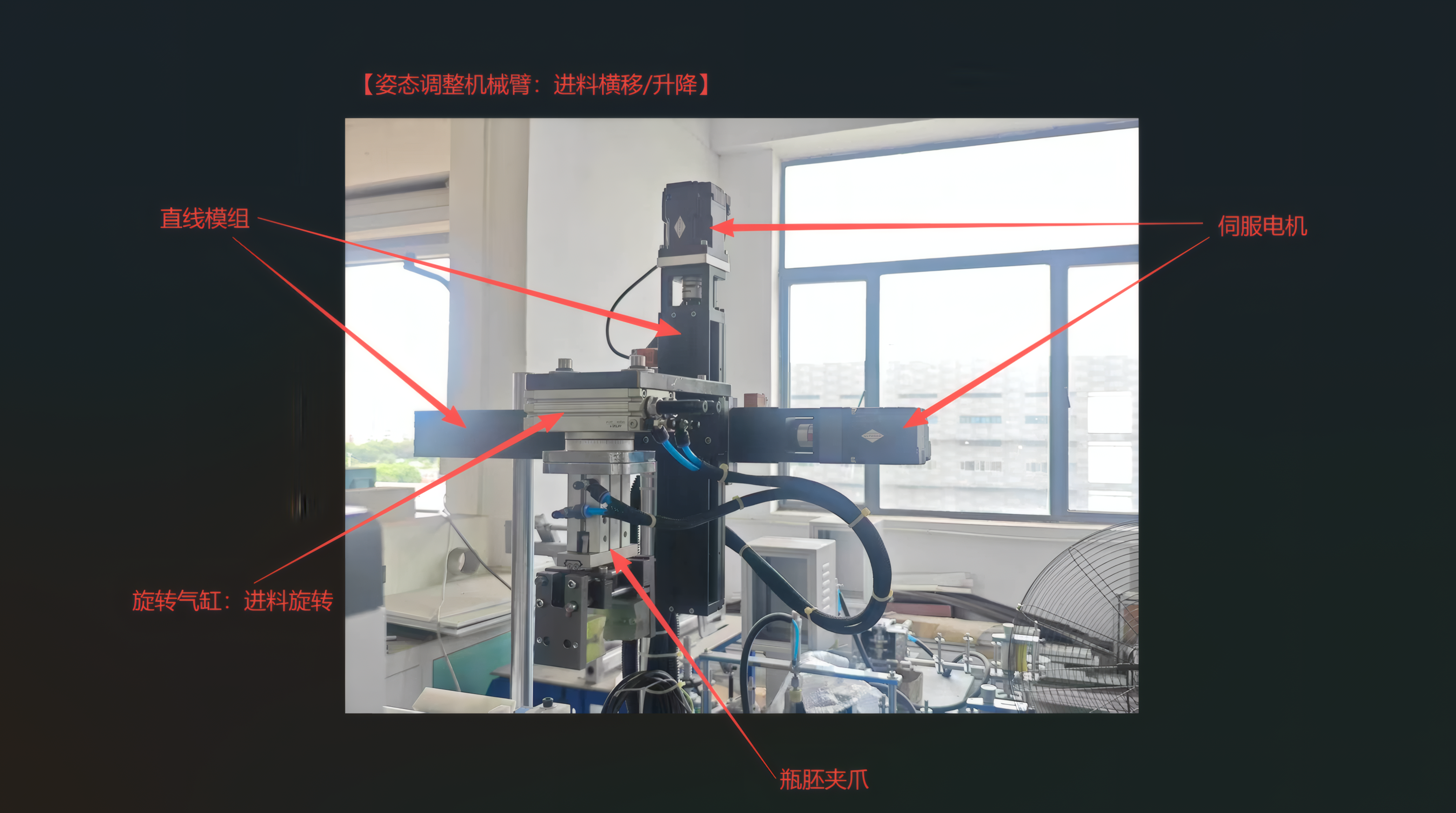

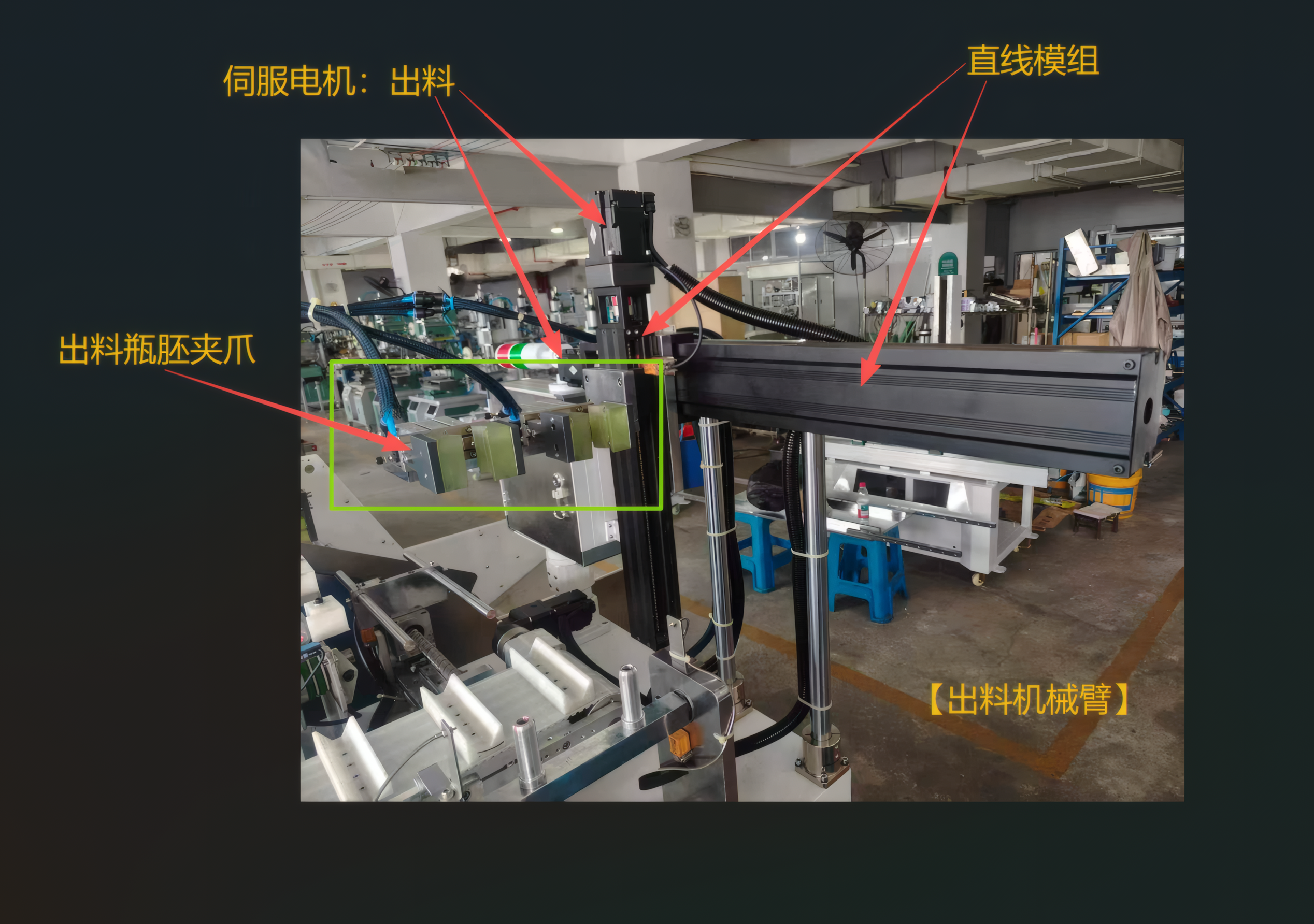

Pick, lift, traverse and place preforms at the downstream blow-molding fixture position.
Machine views

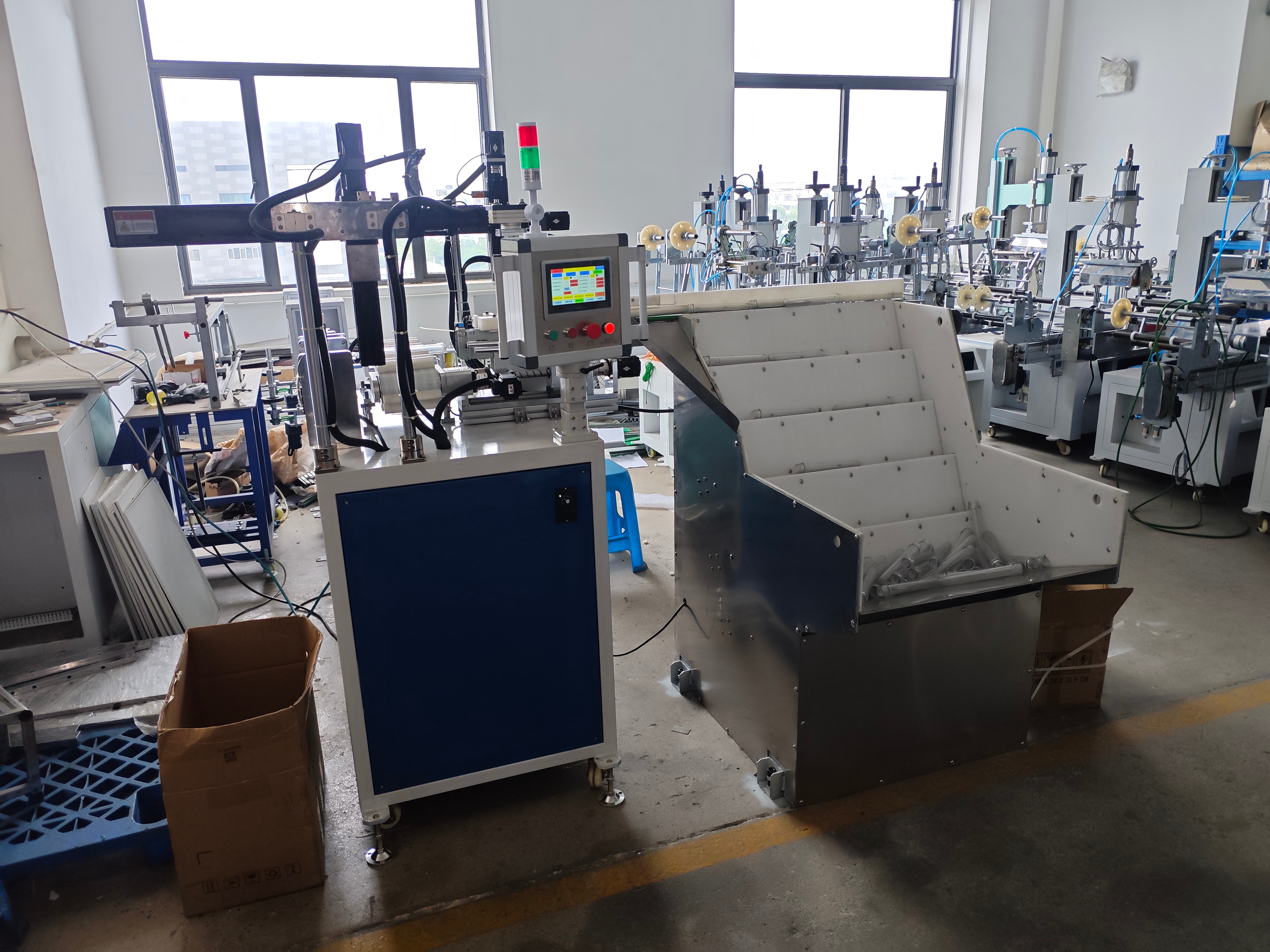

Machine and mechanism photos
Factory video notes
See the mechanism and workpiece in motion
Related applications
Products and production scenarios
Knowledge base
Principles and commissioning guides
Selection notes
Configuration details
- The downstream blow-molding machine's own controls and process parameters are outside this solution page.
- Final fixture, position and timing settings depend on the preform and the installed production line.
- Throughput depends on the final configuration and sample trial.
Questions
Frequently asked questions
Is this machine available as a standard model?
The material-flow concept is reusable, but fixtures, positions and interfaces must be checked against the PET preform and the installed blow-molding line.
What changes when a preform specification changes?
Check the receiving fixture, conveyor alignment, push-in depth, orientation endpoints, pickup position and downstream placement path before trial operation.
Can the system be connected to an existing blow-molding line?
Integration can be evaluated after the downstream fixture position, available space, line rhythm and interface conditions are provided.
